John Deere LA175 McKinneyHondaPowersports.Com RUSTON, LA (318) 255-6777

Showcase Product Detail

	Starting At: $2,749.00

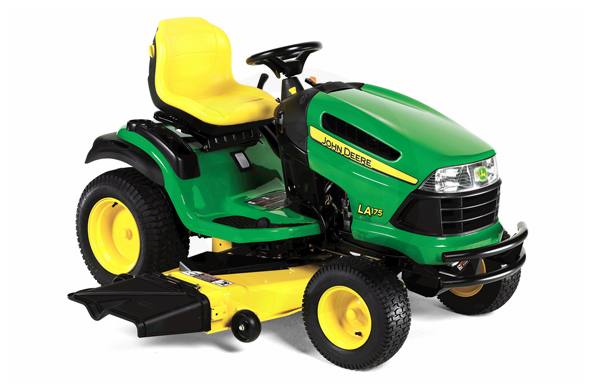

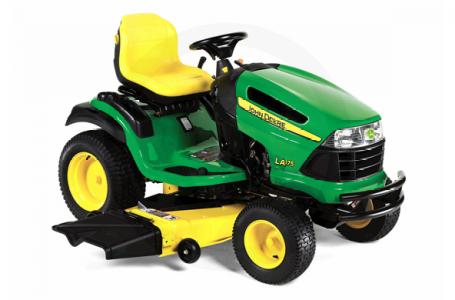

2009 John Deere LA175

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

OEM Overview
Specifications
Compare Models
Current Promotions

Overview

Print Brochure

A 26-hp Briggs & Stratton V-twin engine provides plenty of power and torque to handle tough mulching, mowing, and bagging conditions
V-twin cylinder design for greater torque, lower vibration, and improved sound quality
Tough, durable, and will not dent or rust
Color is molded in for long-lasting good looks
UV-resistant JD Loy material resists fading
Openings on the side of the hood let in plenty of cooling air while keeping the sound level low
Two headlights provide good lighting for nighttime operation
12-volt power port offers customers the ability to use accessories requiring electric power. This provides enhanced utility of the tractor.
John Deere attachments for use with the power port include a grab light and oscillating fan.
Deluxe three-spoke steering wheel on the provides the customer with greater operator comfort and control.
Ignition switch is on the dash for starting ease.
Wide footrest areas with non-slip, anti-vibration rubber footpads are provided for operator comfort and safety.
Deluxe operator seat includes lumbar adjustment (LA165, LA175) for extra operator comfort. It is especially helpful when operating the tractor for extended periods of time.
Seat can be easily adjusted forward or rearward while in the seat, with seat travel of 5-1/2-in. and 10 different positions
Seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank
Beverage holder is found on the right side fender for added value and operator convenience.
The fuel tank provides visibility to the amount of fuel in the tank.
Particularly helpful in preventing spills when filling the fuel tank
Gives operator a simple way to view how much fuel is left in the tank
Fuel Tank Capacity: 4 gal. (15.1 l)
California 100 Series Tractors have a unique fuel system to meet the California Air Resource Board (CARB) requirements.
California 100 Series: 2.25 gallon (8.5 L) fuel capacity
California 100 Series: Tractor has a unique fuel tank that has been certified by CARB to not release fuel vapors into the atmosphere
California 100 Series: Tractor has a unique fuel cap that is tethered to the tank so that it will not be lost and the tractor run with an open fuel tank; the cap clicks when it is fully installed so the operator knows that the tank is sealed
California 100 Series: Instead of a fuel tank vent a carbon canister, located under the rear fender deck, collects and absorbs fuel vapors and routes them to the engine when it is running to be burned
California 100 Series: The tractor has a CARB certified engine that produces less air pollution
The EdgeTM Cutting System has been trademarked to emphasize the advantages of the John Deere mower deck designs. They give superior mowing convenience, performance, and reliability.
Deep-deck mower design lifts grass for a clean, even cut
Smooth underside of mower prevents grass buildup and evenly disperses grass clippings
The rolled outer edge of the deck provides extra strength and protection
Dual-stage E-coat and powder paint coatings provide extra protection from rust
The 54-in. mower deck is a three-spindle, heavy-duty, 11-gauge (0.120-in., 3 mm) steel deck with rolled edges for added safety and strength.
Deck includes four mower wheels and two front anti-scalp wheels for a smooth mowing job, even in rolling terrain
Flexible discharge chute minimizes property and mower damage
A 6-1/2 bushel Power Flow material collection system is available
The mower comes with standard blades that work good when side discharging and when collecting material with the 6-1/2 bushel Power Flow material collection system
Mulching attachment is sold separately; special blades for mulching are included with the mulching attachment
A wash port is provided to make cleaning the underside of the mower deck easy.
Hose connector included with mower deck
Spring-assisted, low-effort lift lever simplifies setting and adjusting the mower cut height.
Increments of 1/4-in. allow the operator to fine-tune the cut height
The standard cut-height memory indicator allows the operator to choose the same cut height each time the grass is cut
Electronic ignition for fast starts
Cast-iron sleeves for longer engine life
Overhead valves for excellent power and fuel economy
Full-pressure lubrication and oil filter keep oil cleaner for long engine life and extends time between oil changes; full-pressure lubrication is also more effective when operating the tractor on an incline
No-tools oil drain valve provides easy access for oil changes.
The solid one-piece frame is constructed of 12-gauge (0.11-in., 3.0 mm) steel.
Full-length robotically welded frame design has high-strength steel rails for added strength and long life
One-piece fender deck is bolted to the frame
The CargO MountTM system is a combination of front and rear mounting points that provide convenient and easy installation of the sun canopy, rear bagger, and other attachments.
The front axle is constructed of solid cast iron that will not bend.
Automotive-like steering system with sector and pinion steering gears with dual drag links provides a very strong, low-effort, and tight-turning system
Grease fittings allow regular lubrication to help maintain easy steering and minimize wear
Large, 3/4-in. diameter wheel spindles provide excellent durability
A Kanzaki Tuff Torq™ hydro/automatic transmission gives an infinite choice of speeds and makes changing direction of travel easy.
Appropriate transmissions are used in each model depending on rear tire size and tractor performance requirements to ensure excellent performance and reliability: Tuff Torq K46
Easy-to-use cruise control option maintains the tractor's speed for mowing larger areas.
To engage, lift up on cruise lever and hold until foot is removed from forward pedal
To disengage, lightly press then release forward pedal
For emergency stops, cruise can be released by pushing on the brake pedal or pushing down on the cruise control lever
The hood is made of injection-molded JD Loy UV-resistant polymer.

Warranty

2 year

RIO (Reverse Implement Option)

Mowing while backing up is strongly discouraged.
An operator who deems it necessary and chooses to keep the mower (or other implement) engaged while backing up should first bring the tractor to a stop and look behind the tractor to be sure there are no bystanders. Then actuate (push in) the RIO button. The RIO button must be held down in the reverse implement position as the shift lever is moved into reverse (reverse foot pedal is depressed on automatic drive models).
The operator may then release the button and the mower will continue to operate while they are backing up and also when they resume forward operation. The next time the operator chooses to keep the mower engaged while backing up, they must repeat this procedure. If the mower (PTO) is engaged and the operator shifts into reverse or depresses the reverse pedal prior to pressing the RIO button, ignition to the engine will be shut off. The engine will stop unless the operator either pushes on the RIO switch or shifts out of reverse.
If the engine does stop, the operator must return the mower engagement (PTO) switch or lever to the ''off'' position, depress the brake pedal, and then turn the ignition switch to restart the engine.

Engine

Power: 26 hp (19.4 kW)
Displacement: 44.2 cu. in. (724 cc)
Manufacturer: Briggs & Stratton
Cylinders: V-twin
Type: Overhead valve, Extended Life Series (ELS)
Oil Drain: No tools
Charging System: 16 amp regulated
Choke/Speed Control: One lever
Fuel Tank Location: Rear
Fuel Tank Capacity: 4 gal. (2.25 gal. for California model)
Fuel Sight Gauge, front

Transmission

Control: Two-pedal foot control
Cruise Control
Forward Speed: 0-5.5 mph
Reverse Speed: 0-3.2 mph

Chassis

Frame: Full-length welded steel frame
Primer/Paint: E-coat/powder
Front Tires: 16x6.5-8
Rear Tires: 22x9.5-12
Front Axle: Cast iron
Hood Material: JD Loy
Floor Mats
CargO Mount System
Storage Pocket
12 Volt Outlet
Hourmeter
Service Interval Decal
Tool Tray
Cupholder

Steering

Turning Radius: 18 in.
Uncut Circle Radius: 18 in. (54 in. mower)

Seat

Seat Back Height: 15 in. w/lumbar adjustment
Fore-aft Adjustment: 5 1/2 in. while seated

Mower

Mower Cutting Width: 54 in.
Mower Deck Material: .120 in. (11 ga.)
Mower Wash Port
Easy-Level Deck
Mower Drive System: Electric PTO

Mower Attachability

Front Draft Arms: Spring pin
Rear Draft Arms: Spring pins
Meets ANSI Standard
Backup Protection: RIO
Safety Video

Dimensions

Wheelbase: 48.9-in. (124.2 cm)
Overall Length: 75.3-in. (191.2 cm)
Overall Width (includ. discharge chute): 67-in. (170 cm)
Height: 46.8-in. (119 cm)

Lift System

Mower Cut Height: 1-4 in., 13 positions
Cut Height Increments: 0.25 in.

Optional Attachments

Mower: 54 in. Edge (standard)
Rear Bagger: 6.5 bu. 2-bag Power Flow
Mulching System: High-performance plug
Snow Blade: 46 in.
Snow Blower: 44 in. two-stage
Front Bumper: Two-bar front bumper is standard equipment
12-Volt Oscillating Fan
12-Volt Grab Light
Sun Canopy
Bucket Holder
Tow-Behind Tools: 14
Mounted Electric Spreader: 100 lb, 2 cu ft

NOTES:

Engine horsepower is provided by the engine manufacturer for comparison purposes. Actual operating horsepower will be less.

Specifications

Engine
Engine Manufacturer	Briggs & Stratton
Horse Power	26 hp (19.4 kW)
Engine Type	V-twin - ELS
Displacement	44.2 cu. in. (724 cc)
General
Wheel Size	Front Tires: 16x6.5-8; Rear Tires: 22x9.5-12
Fuel Capacity	4 gal. (2.25 gal. for California model)
Deck
Deck Size	54 in.
Discharge Type	Side; Optional: Mulcher; Bagger

Compare Models

Deck

Year	2009
Manufacturer	John Deere
Model	LA175
Style	Riding
MSRP*	$2,749.00
Deck Size	54 in.
Discharge Type	Side; Optional: Mulcher; Bagger
Engine
Engine Manufacturer	Briggs & Stratton
Horse Power	26 hp (19.4 kW)
Engine Type	V-twin - ELS
Displacement	44.2 cu. in. (724 cc)
General
Transmission
Wheel Size	Front Tires: 16x6.5-8; Rear Tires: 22x9.5-12
Fuel Capacity	4 gal. (2.25 gal. for California model)
