$12,849.00

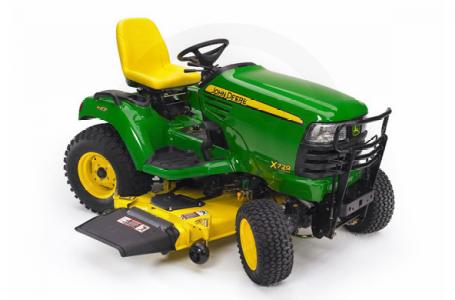

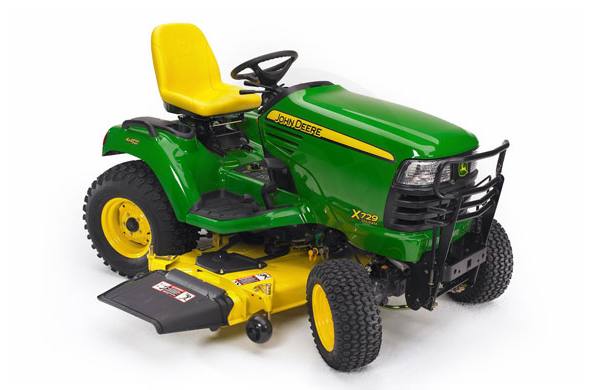

2009 John Deere Select Series™ X729 Ultimate™ 62" Deck
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Power
    • 27-hp V-twin, liquid-cooled John Deere iTorque™ Power System (a combination of engine features that provide more lugging ability, even cooling, and durability) provides exceptional performance and durability to handle commercial applications
    • Full-time 4WD; works in forward and reverse; separate front wheel motors adjust speed in turns to eliminate turf scuffing
    • Limited Category 1 3-point hitch available for rear-mounted equipment
    • Internal hydraulic PTO with multi-disk clutch pack: Soft, smooth clutch engagement, Longer disk life with continuous oil bath, No service required - disks are self-adjusting
    • Shaft drive output through continuous live transmission PTO; no belts to slip or wear out
    Durability
    • Heavy-duty robotically welded frame for the strength to operate a wide variety of equipment
    • Front axle is made of strong, shock resistant nodular cast iron; will not bend or deform, as is possible with steel-fabricated axles
    • Front Quik-Tatch weight bracket is designed into the frame: Provides a convenient way to add 168 lb. of weight to the front of the tractor using four suitcase weights, Extends ahead of the hood to act as a bumpe
    • Optional front brushguard protects tractor's front bumper and grill from damage
    Performance
    • 4-wheel steer improves the tractors maneuverability and trimming performance; allows the operator to get work done more quickly with less backing up for improved efficiency and safety
    • Power steering and cruise control provides effortless, automotive-like control for reduced operator fatigue, increased maneuverability and productivity
    • Twin Touch™ automatic transmission provides comfortable two-pedal foot control for effortless speed and direction changes
    • Two-function hydraulic control system allows effortless equipment control
    • A foot-operated differential lock supplies positive power to both rear drive wheels for increased traction; conveniently located on the left footrest for easy engagement (toe versus heel)
    • EDGE Xtra™ Cutting System designed to provide excellent performance; converts easily between side discharge, mulching and material collection
    • Available with 48-, 54-, or 62-inch mower deck; resilient 4-point mounting system; wider gauge wheels; 1/4-inch cut height increments
    • Optional Power Flow™ material collection system and mulching attachment
    • Large, automotive-type headlights (37-watt halogen), taillights and back-up lights provide unsurpassed nighttime illumination; easily operated with a single dash-mounted switch
    • Large 6-1/2 U.S. gallon capacity fuel tank holds enough fuel for extended operation between refills
    Convenience
    • Full instrumentation and automotive-type controls are color coded and conveniently located for easy access
    • Handy 12-volt outlet powers cell phone, CD player or sprayer
    • Mower deck height-of-cut control locks mower in fully raised position so 3-point hitch equipment can be raised or lowered independently of the mower; provides a mower cut height range from 1 to 4 1/2 inches
    • One-piece hood opens easily to permit checking and servicing the engine; hood can easily be completely removed without tools
    • Parking brake control is conveniently located below the key switch on the steering pedestal; depressing master stop brake pedal disengages the PTO and cruise control
    • Standard toolbox and cupholder keep tools and beverages within reach
    Comfort
    • 18-inch professional high-back sit-and-adjust seat features 7 inches of travel; seat angle can be adjusted to any of six positions for operator comfort; folds forward for protection from elements
    • Six-position tilt steering wheel can be adjusted for optimum operator comfort and makes getting on and off the tractor easy
    • Non-slip foot pads help isolate the operator's feet from vibration
    • Fender handles provide a convenient handhold when operating on slopes
    • Roomy and uncluttered open platform makes getting on and off the tractor easy
    Warranty
    • 4-year limited warranty for Select Series™ - 48 Months or 700 Hours, Whichever Comes First
    Engine
    • Power: 27 hp (20.1 kW)
    • Displacement: 45.5 cu. in. (745 cc)
    • Manufacturer: Kawasaki
    • Cylinders: V-twin, cast-iron liners
    • Type: EFI, OHV, oil filter
    • Cooling Method: Liquid
    • Alternator Capacity: 20 ampere
    • Fuel Tank Capacity: 6.5 gal.
    Transmission
    • Type: Full-time 4-wheel drive
    • Control: Twin Touch pedals
    • Cruise Control
    • Oil Cooler
    • Differential Lock
    • Forward Speed: 0-8.5 mph
    • Reverse Speed: 0-6 mph
    Chassis
    • Frame: Fully welded
    • Primer/Paint: E-coat/powder
    • Weight Bracket, front
    • Receiver Hitch, front
    • Front Tires: 18x8.50-10
    • Rear Tires: 26x12.00-12
    • Front Axle: Cast iron
    • Hood Material: Noryl
    • Hourmeter
    • Headlights: Halogen
    • Taillights
    • Backup Lights
    • Rear Work Lights
    • 12 Volt Outlet
    • Service Interval Decal
    • Covered Toolbox
    • Fender Handles
    • Cupholder
    Steering
    • Type: Power
    • Tilt Steering Wheel, 6 positions
    • All-Wheel Steer
    • Turning Radius: 21 in.
    • Uncut Circle Radius: 6 in.
    • Spindle Bushings: Metal, replaceable
    Seat
    • Seat Back Height: 18 in.
    • Fore-aft Adjustment: 7 in. while seated
    • Seat Suspension: Six-position
    Lift System
    • Type: Two-function hydraulic
    • Hydraulic Outlets: Four
    • Mower Cut Height: 1-4.5 in.
    • Cut Height Increments: 0.25 in.
    • Preset Cut Height
    Mower Deck
    • Mower Deck Material: .135 in.
    • Mower Wheel Adjustment: Spring-loaded pin, 7-positions
    • Mower Drive System: Hydraulic clutch, shaft
    • Mower Wheels: Four
    Mower Attachability
    • Front Draft Arms: Overcenter
    • Rear Draft Arms: V-align
    • Drive Shaft: Spline align
    • Drive Shaft Lock: Lock-back collar
    • Mower Wheels Rotate
    Safety
    • Meets ANSI Standard
    • OPEI Label
    • Backup Protection: RIO
    • Safety Video
    Optional Attachments
    • Mowers: 48X, 54X, 62X
    • Powered Collection: 7, 14, 19 bu. Power Flow
    • Mulching System
    • Front Thatcher: 38, 46, 54 in.
    • Front Blade: 54 in.
    • Snow Blower: 47 in.
    • Rotary Broom: 52, 60 in.
    • 3-Point Hitch: Category 1
    • Rear PTO: 540 rpm
    • Rotary Tiller: 42, 48 in.
    • Box Scraper: 48 in.
    • Cultivator: Adjustable 30-46 in.
    • Rear Blade: 60 in.
    • Sprayer, Cat. 1: 40 gallon
    • Generator: 10 Kilowatt
    • Weather Protection: Hard or soft cab, weather enclosure
    • Rear Receiver Hitch: 1 1/4 in. x 1 1/4 in.
    • Tow-Behind Tools: 19
    • Roller Striping Kit
    • Tractor Shovel: 54 in.
    • Disk: Adjustable 42-52 in.
    • Plow: Adjustable 8-14 in.
    • Landscape Rake: 60 in.
    NOTES:

    Engine hp is provided by engine mfr. for comparison purposes. Actual operating hp will be less.


    Specifications

    Engine
    Engine Manufacturer Kawasaki
    Horse Power 27 hp (20.1 kW)
    Engine Type V-twin, cast-iron liners
    Displacement 45.5 cu. in. (745 cc)
    General
    Transmission 4-wheel drive
    Wheel Size Front Tires: 18x8.50-10; Rear Tires: 26x12.00-12
    Fuel Capacity 6.5 gal.
    Deck
    Deck Size 62 in.
    Discharge Type Side; Optional: Bagger, Mulcher

    Compare Models

    		 Print








    Year 2009
    Manufacturer John Deere
    Model Select Series™ X729 Ultimate™ 62" Deck
    Style Riding
    MSRP* $12,849.00
    Deck
    Deck Size 62 in.
    Discharge Type Side; Optional: Bagger, Mulcher
    Engine
    Engine Manufacturer Kawasaki
    Horse Power 27 hp (20.1 kW)
    Engine Type V-twin, cast-iron liners
    Displacement 45.5 cu. in. (745 cc)
    General
    Transmission 4-wheel drive
    Wheel Size Front Tires: 18x8.50-10; Rear Tires: 26x12.00-12
    Fuel Capacity 6.5 gal.
